Specification
- Product number
- A1773101200-AA
- Weight
- 20 kg
- Variant no.:
- RBV1166350
Description
Valid for the following equipment codes:- 550- TRAILER HITCH
Included in delivery:

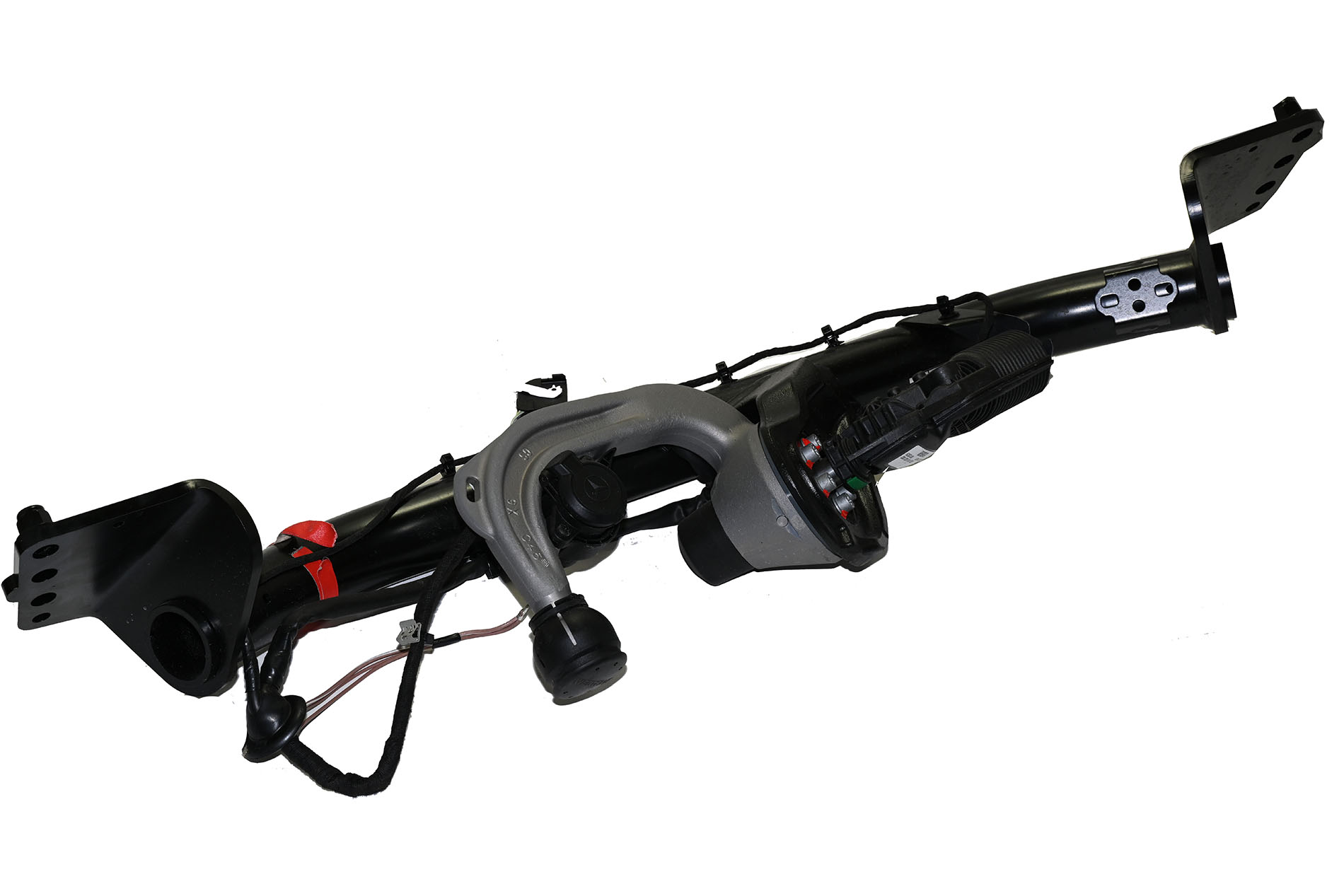

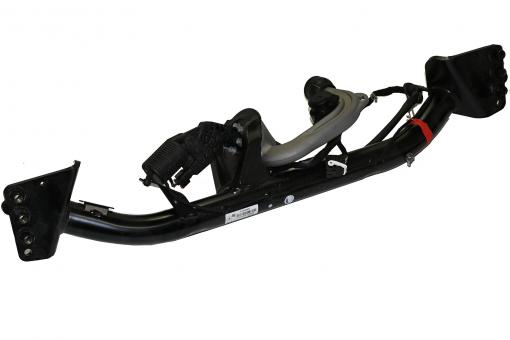

- A1773101200 Trailer coupling
- electrical wiring harness
Not included in delivery:
- Reinforcement, left
- Right reinforcement
- Mounting material
- Wiring harness from trailer hitch control unit to SAM control unit
- Trailer hitch control unit
- SAM control unit
- accessories
- Customer note:
- SAM control unit for retrofitting the trailer hitch
- Can. If necessary, remove the SAM control unit and
- Trailer hitch compatible.
- Check in the EPC whether the vehicle equipment installed
- Electric fan can be used for retrofitting the trailer hitch.
- If necessary, the electric fan must be removed and
- Replace trailer hitch-compatible electric fan with higher output.
- If the electric fan has to be replaced, the
- Wiring harness and the new electric fan.
Hint:
- Electrically folding trailer coupling must be taught in again!
Suitable models
- A 160 d (177002)
- A 180 d (177003)
- A 180 d (177010)
- A 200 d (177012)
- A 200 d 4MATIC (177013)
- A 220 d (177014)
- A 220 d 4MATIC (177015)
- A 220 (177044)
- A 220 4MATIC (177045)
- A 250 (177046)
- A 250 4MATIC (177047)
- AMG A 35 4MATIC (177051)
- AMG A 45 4MATIC+ (177053)
- AMG A 45 S 4M+ (177054)
- A 160 (177082)
- A 180 (177084)
- A 250 e (177086)
- A 200 (177087)
- A 200 4MATIC (177088)
- A 160 d (177102)
- A 180 d (177103)
- A 180 d (177110)
- A 200 d (177112)
- A 200 d 4MATIC (177113)
- A 220 d (177114)
- A 220 d 4MATIC (177115)
- A 220 (177144)
- A 220 4MATIC (177145)
- A 250 (177146)
- A 250 4MATIC (177147)
- AMG A 35 4MATIC (177151)
- A 180 (177184)
- A 250 e (177186)
- A 200 (177187)
- A 200 4MATIC (177188)
- B 180 d (247003)
- B 180 d (247010)
- B 200 d (247012)
- B 200 d 4M (247013)
- B 220 d (247014)
- B 220 d 4M (247015)
- B 220 (247044)
- B 220 4M (247045)
- B 250 (247046)
- B 250 4M (247047)
- B 160 (247082)
- B 180 (247084)
- B 250 e (247086)
- B 200 (247087)
- B 200 4M (247088)
- GLA 180 d (247710)
- GLA 200 d (247712)
- GLA 200 d 4M (247713)
- GLA 220 d (247714)
- GLA 220 d 4M (247715)
- GLA 250 (247746)
- GLA 250 4M (247747)
- AMG GLA 35 4M (247751)
- AMG GLA 45 4M+ (247753)
- AMG GLA 45 S 4M+ (247754)
- GLA 180 (247784)
- GLA 250 e (247786)
- GLA 200 (247787)
